รายละเอียดสินค้า:
|
| ประเภทแรงดัน: | สุญญากาศ เกจ ดิฟเฟอเรนเชียล | แรงดันใช้งาน: | 15 ปอนด์ต่อตารางนิ้ว |
|---|---|---|---|
| ความถูกต้อง: | 0.4 % | ประเภทผลิต: | อนาล็อก |
| เน้น: | Board Mount Pressure Sensors Miniature Low,Miniature Low Board Mount Pressure Sensors,PCCFA6D Board Mount Pressure Sensors |
||

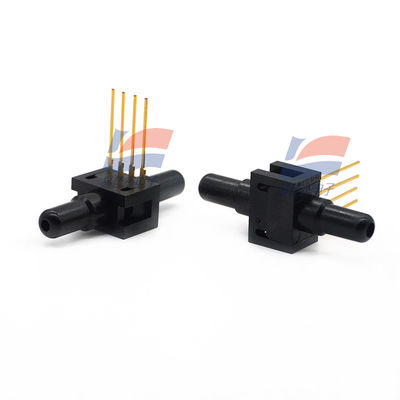

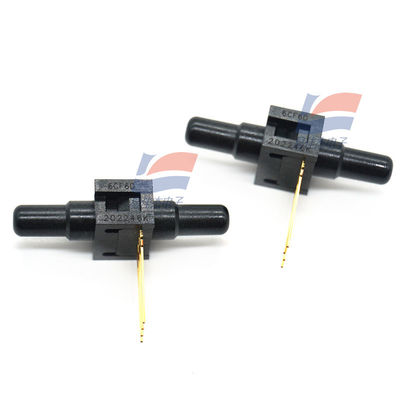

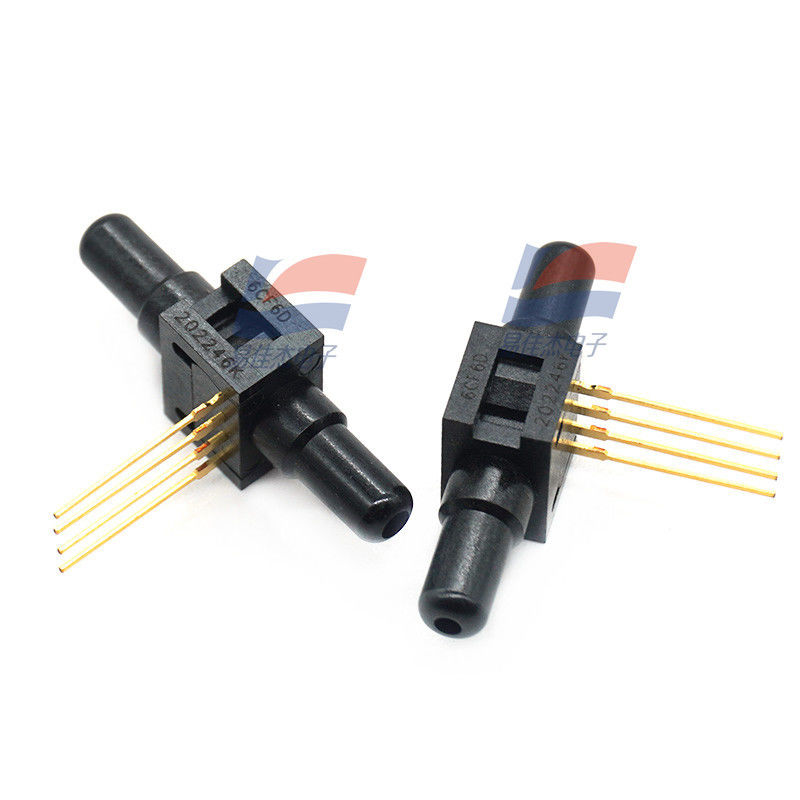

26PCCFA6D Board Mount Pressure Sensors Miniature Low
The 26PC Series Miniature Pressure Sensors are small, cost-effective devices intended for use with wet or dry media.
These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element
to offer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a Wheatstone
bridge. When pressure is applied, the resistance changes and the sensor provides a milliVolt output signal that is proportional to the input pressure.
|
Mounting Style
|
Through Hole |
| Operating Supply Voltage | 10 V |
| Port Type | Dual Axial Barbless, Opposite Sides |
| Package / Case | SIP-4 |
| Minimum Operating Temperature | - 40℃ |
| Maximum Operating Temperature | + 85℃ |
| Supply Voltage - Max | 16 V |
