รายละเอียดสินค้า:
|
| ประเภทแรงดัน: | มาตรวัดช่องระบายอากาศ | แรงดันใช้งาน: | 1PSI (6.89kPa) |
|---|---|---|---|
| ประเภทผลิต: | สะพานวีทสโตน | output: | 0 mV ~ 18 mV (12V) |
| เน้น: | board mount pressure sensor,silicon uncompensated pressure sensor,gas pressure sensor |
||

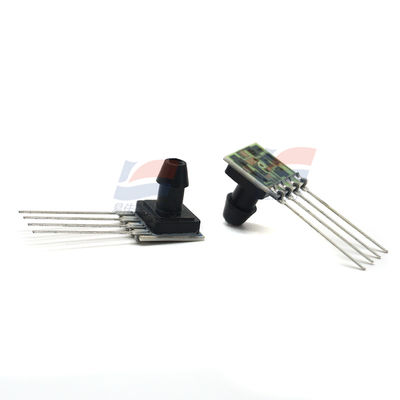

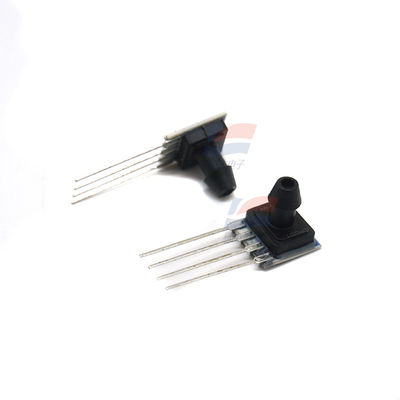

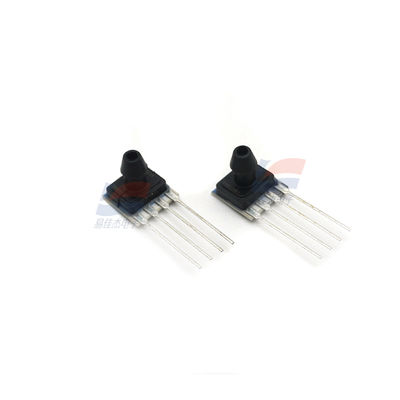

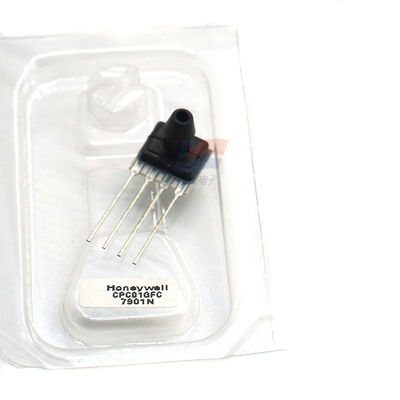

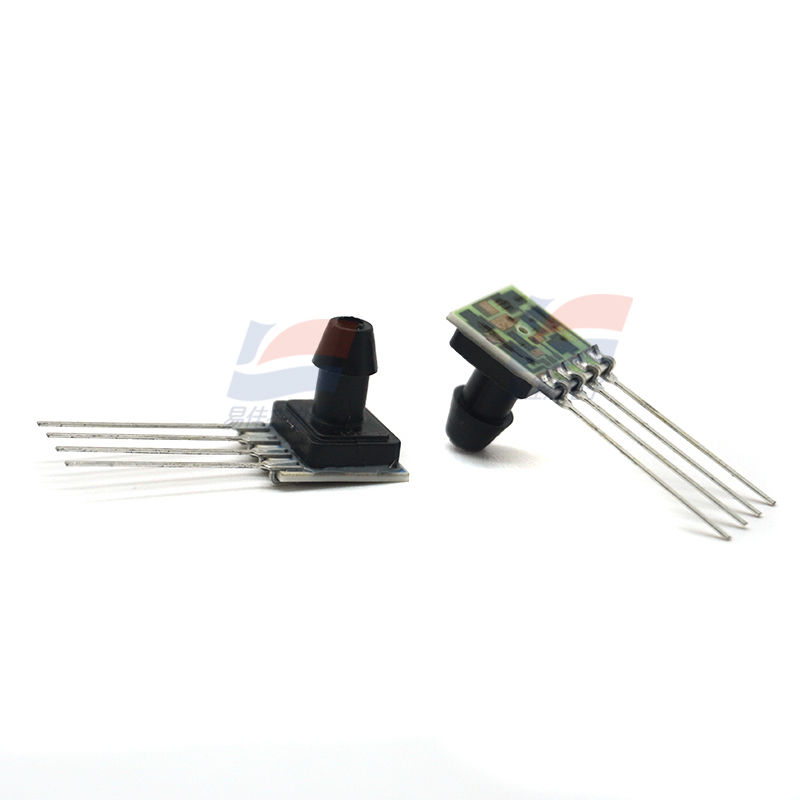

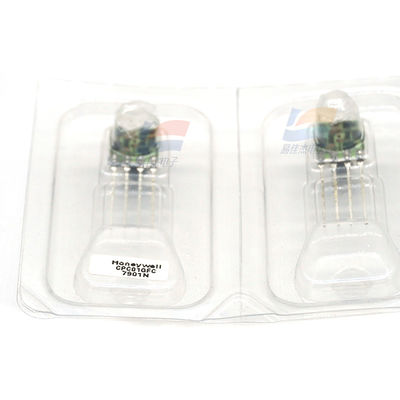

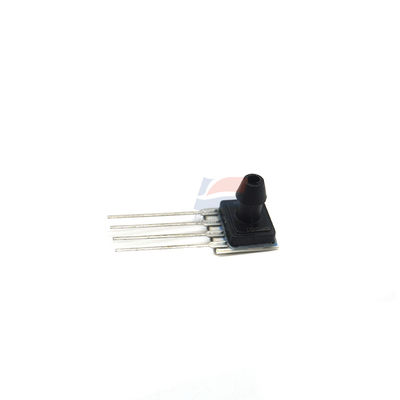

CPC01GFC Board Mount Pressure Sensor Silicon Uncompensated
The CPX/CPXL and the CPC/CPCL Series sensors integrate silicon micromachined sensing technology, temperature
compensation, and calibration in a complete family of low cost packages. This series offers the most cost-effective solution for
design requirements.
FEATURES
• Low cost, small size
• Temperature compensated
• Zero and span calibrated
• Millivolt output
• Differential, gage and absolute pressure
• Constant voltage excitation
• High impedance - low current
POTENTIAL APPLICATIONS
• Medical applications
• Applications requiring small size
• Applications requiring vacuum and positive
• Pressure reference, or both
| Accuracy | ±2% |
| Voltage - Supply | 3V ~ 16V |
| Port Size Male | 0.15" (3.8mm) Tube |
| Operating Temperature | -25°C ~ 85°C |
| Package / Case | 4-SIP Module |
