รายละเอียดสินค้า:
|
| ความดันในการทํางาน: | 5 ปอนด์ต่อตารางนิ้ว | ความถูกต้อง: | 0.2 % |
|---|---|---|---|
| ประเภทผลิต: | อนาล็อก | รูปแบบการติดตั้ง: | ผ่านหลุม |
| แรงดันไฟฟ้าของแหล่งจ่ายไฟทำงาน: | 10V | ประเภทพอร์ต: | แกนเดี่ยวมีหนาม |
| เน้น: | medical equipment pressure sensor,board-mounted pressure sensor,instrument pressure sensor small |
||
Product Description:

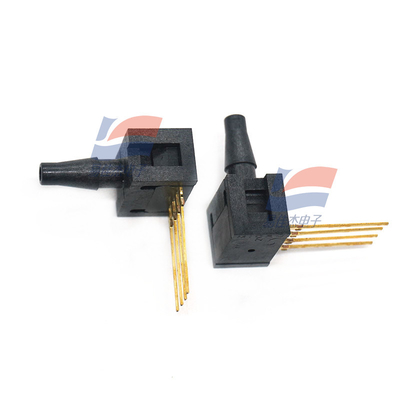

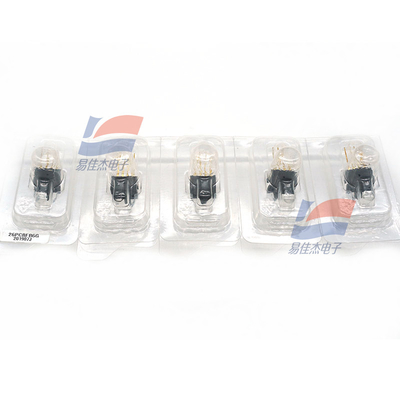

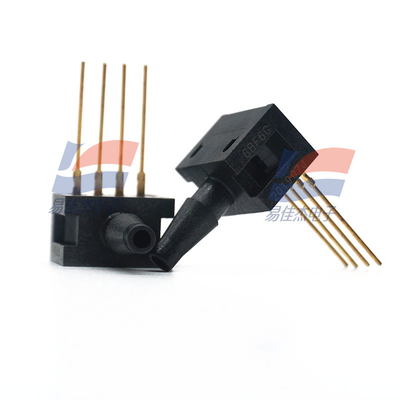

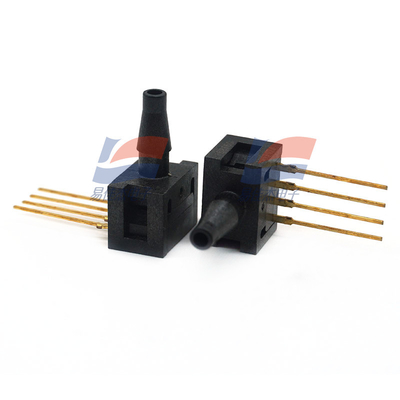

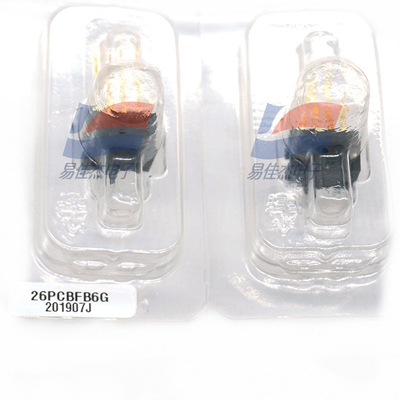

YJJ 26PCBFB6G Is A Small Board-Mounted Pressure Sensor Used In Medical Equipment And Instrument Applications
Features:
26PC series miniature pressure sensors are compact and cost-effective devices, suitable for both wet and dry media. These sensors employ proven sensing technology and utilize specialized piezoresistive micro-machined sensing elements, offering high performance, reliability, and accuracy. Each sensor contains four active piezoresistors, forming a Wheatstone bridge. When pressure is applied, the resistance changes, and the sensor provides a millivolt output signal proportional to the input pressure.
The low-power 26PC sensors are designed to accommodate pressures ranging from 1 psi to 250 psi and have an operating temperature range of -40ºC to 85ºC [-40ºF to 185ºF]. These sensors can accommodate a variety of wet and dry media compatible with the polyphenylene terephthalamide (PPA) plastic and the sealing media specified in the naming convention and order guidelines.
The 26PC sensors comply with the RoHS standard. Their design and manufacture adhere to the ISO 9001 standard. What makes our sensors better? Wet/wet capability (i.e., liquids on both ports) Selectable sealing elements that match the used medium Higher pressure range for high-pressure applications Multiple pressure port types Provide SIP and DIP packages simultaneously
Features and Benefits: One sensor can perform two tasks! It provides liquid sensing in differential applications. The temperature range is from -40°C to 85°C, allowing for use in various environmental conditions. The pressure range is between 1 PSi and 250 PSi, providing flexibility for the customer's pneumatic design. Differential and gauge pressure measurement types allow customers to choose the sensor that suits their application.
Product type: Panel interface pressure sensor RoHS:
Pressure Type: Vacuum, Gauge
Working Pressure: 5 psi
Accuracy: 0.2 %
Output Type: Analog
Installation Style: Through Hole
Working Power Supply Voltage: 10 V
Port Type: Single Axial Barbed
Package / Housing: DIP-4
Minimum Working Temperature: -40 °C
Maximum Working Temperature: +85 °C
Series: 26PC
Trademark: Honeywell
Port Size: 0.185 in
Product Type: Board Mount Pressure Sensors 25
Subcategory: Sensors
Maximum power supply voltage: 16 V
Unit weight: 2 g
Specifications:
| Minimum operating temperature | -40 °C |
| Maximum operating temperature | +85 °C |
| Maximum power supply voltage | 16 V |
| Unit weight | 2g |
