รายละเอียดสินค้า:
|
| เอาท์พุทแรงดันไฟฟ้า: | 25 ± 5MV | แรงดันไฟฟ้า: | ±2mV |
|---|---|---|---|
| Tempe.Range ปฏิบัติการ: | -25 ถึง 85 ℃ | ความดันเกิน: | 100mbar |
| เน้น: | medical pressure sensor HVAC,electronic pressure sensor instrumentation,D-S pressure sensor medical |
||

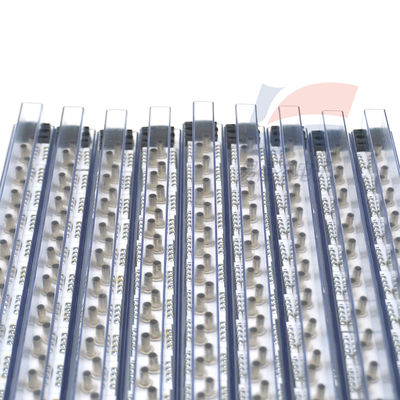

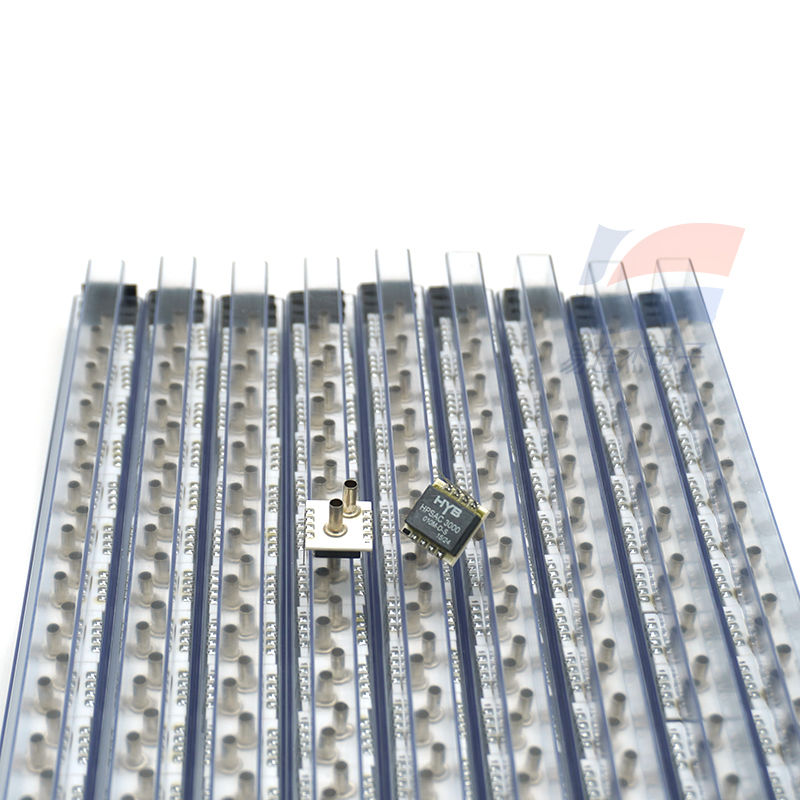

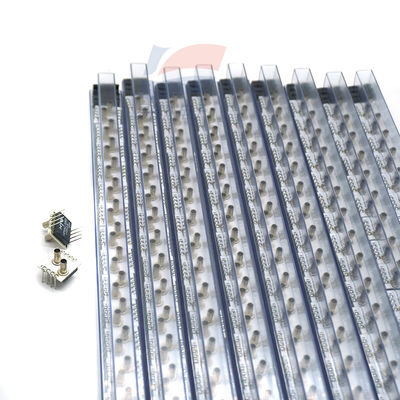

HPSAC3000-010M-D-S Pressure Sensor Medical Instrumentation HVAC
Applications
• Medical instrumentation
• Respirators
• HVAC
• Process control
• Leak detection
• Pneumatic controls
• Altimeters
Features
• Constant voltage excitation
• Easy to use DIP package
• Wide compensated range (0 to 70°C)
• High performance OEM applications
• Zero and span calibration
• Differential, gage and absolute configurations
• Wide pressure range from 10 mbar up to 7 bar
| Input voltage | 10-20V |
| Thermal error of span | 0.2 to 1%FS |
| Thermal error of offset | 0.2 to 1%FS |
| Combined linearity and hysteresis | 0.2 to 0.5%FS |
| Input impedance | 4-25KΩ |
| Output impedance | 0.05%FS |
| Repeatability | ±0.05%FSO |
