รายละเอียดสินค้า:
|
Measurement Range: | 0–50 SLPM | Accuracy: | ±(2.0% + 0.5% F.S.) |
---|---|---|---|
Repeatability: | ±0.75% | Response Time: | <100 ms |
Operating Pressure: | 1.0 MPa (145 psi) | Power Supply: | 8–24 VDC (35 mA typical) |
เน้น: | gas mass flow sensor for compressed air,process gas control flow sensor,medical air flow monitoring sensor |

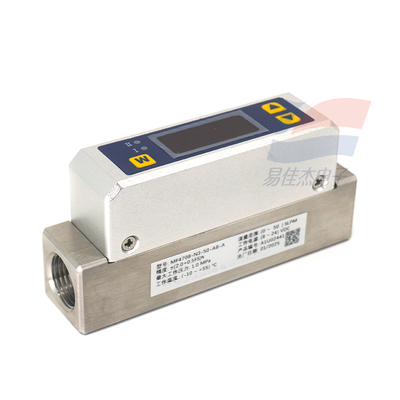

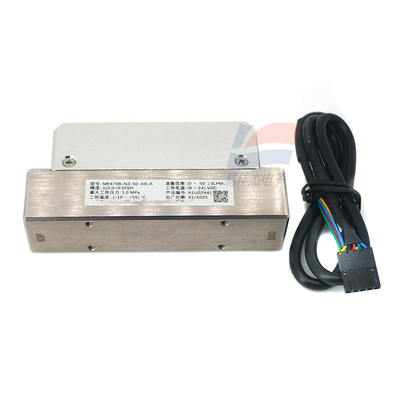

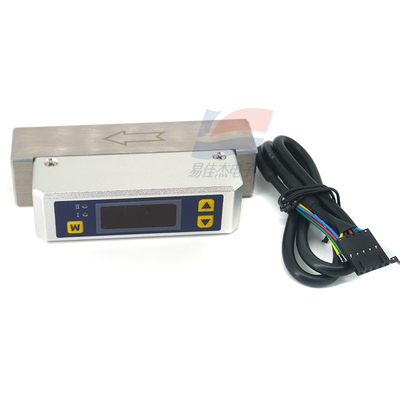

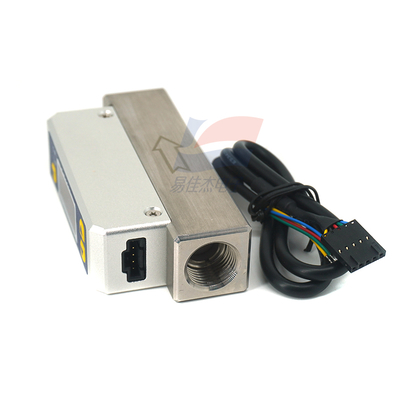

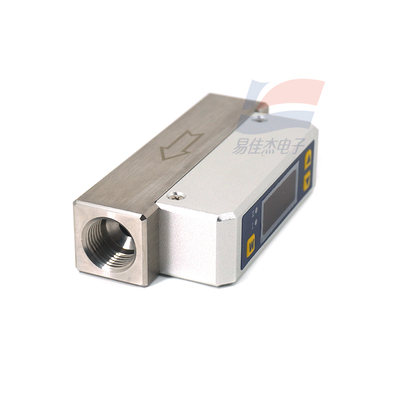

MF4708-N3-50-AB-A Gas Mass Flow Sensor For Process Gas Control Compressed Air Monitoring
Product Features:
Applications:
Measurement Range | 0–50 SLPM (Standard Liter per Minute) |
Accuracy | ±(2.0% + 0.5% F.S.) |
Repeatability | ±0.75% |
Response Time | <100 ms |
Operating Pressure | 1.0 MPa (145 psi) |
Temperature Range | -10°C to +55°C (operating); -10°C to +65°C (ambient) |
Humidity Range | 5–95% RH (non-condensing) |
Output Signals | - RS485 communication (Modbus RTU) - 4–20 mA analog - Pulse output |
Power Supply | 8–24 VDC (35 mA typical) |
Interface Type | NPT 3/8" (customizable to BSPT or other standards) |
Calibration | Air @ 20°C, 101.325 kPa |
Material | Stainless steel 316L (wetted parts) |
Dimensions | Φ25 mm × 80 mm (customizable) |
Weight | 120 g |
