รายละเอียดสินค้า:
|
| Output signal: | 0.10 ± 0.03 mA | Zero current (bias): | < 0.5% concentration of O2 |
|---|---|---|---|
| T90 response time: | < 10 seconds (typical < 5 seconds) | Range: | 0 - 25% |
| Overload: | 30% | Expected service life: | > 60 months |
| เน้น: | lead-free oxygen sensor industrial emissions,three-electrode oxygen sensor 0-30%,electrochemical oxygen sensor industrial |
||
Product Description:

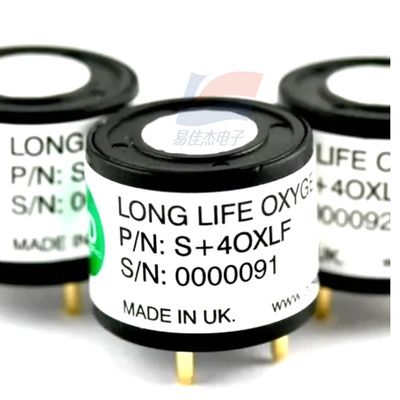

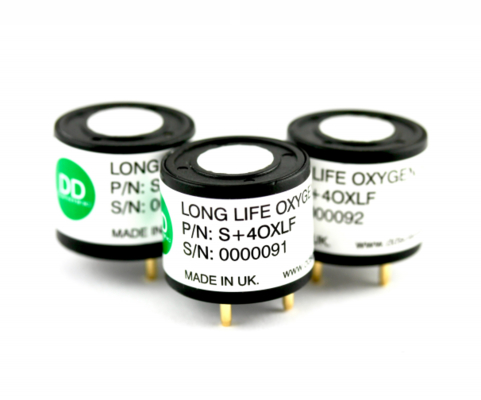

YJJ S+4OXLF Electrochemical 0-30% Three-Electrode Lead-Free Oxygen Sensor For Industrial Emissions
Features:
S+4OXLF is a three-electrode lead-free oxygen sensor, suitable for industrial and emission applications. The sensor's measurement range can exceed 0-30% oxygen concentration, and its operating temperature range is from -40°C to +60°C. The working principle of this sensor is based on the fuel cell principle, which is different from traditional lead-based oxygen sensors based on the Galvanic principle, as it does not contain an anode that needs to be consumed to affect its lifespan. The design life of S+4OXLF is more than 5 years, and it is packaged in the standard industrial 4 series.
Main features:
A lead-free design more suitable for environmental protection
Fast response time, less than 10 seconds
No "spike" design
Long lifespan, more than 5 years
Technical Specifications:
Output signal: 0.10 ± 0.03 mA
Zero current (bias): < 0.5% concentration of O2
T90 response time: < 10 seconds (typical < 5 seconds)
Range: 0 - 25%
Overload: 30%
Environment:
Operating temperature range: -40°C — +60°C
Pressure range: 800 - 1200 mbar
Humidity range: 15% - 90% RH
Life expectancy:
Expected service life: > 60 months
Warranty period: 12 months
Specifications:
| Operating temperature range | -40°C—+60°C |
| Pressure range | 800 - 1200 mbar |
| Humidity range | 15% - 90% RH |
| Warranty period | 12 months |
