รายละเอียดสินค้า:
|
| Supply Voltage: | 2~10V | Working Current: | 0.4~2mA |
|---|---|---|---|
| Range: | 0.7~2.5MPa | Non-linearity: | ±0.3%FS |
| เน้น: | diffuse silicon pressure sensor,fast response pressure sensor,electronic gauge pressure sensor |
||

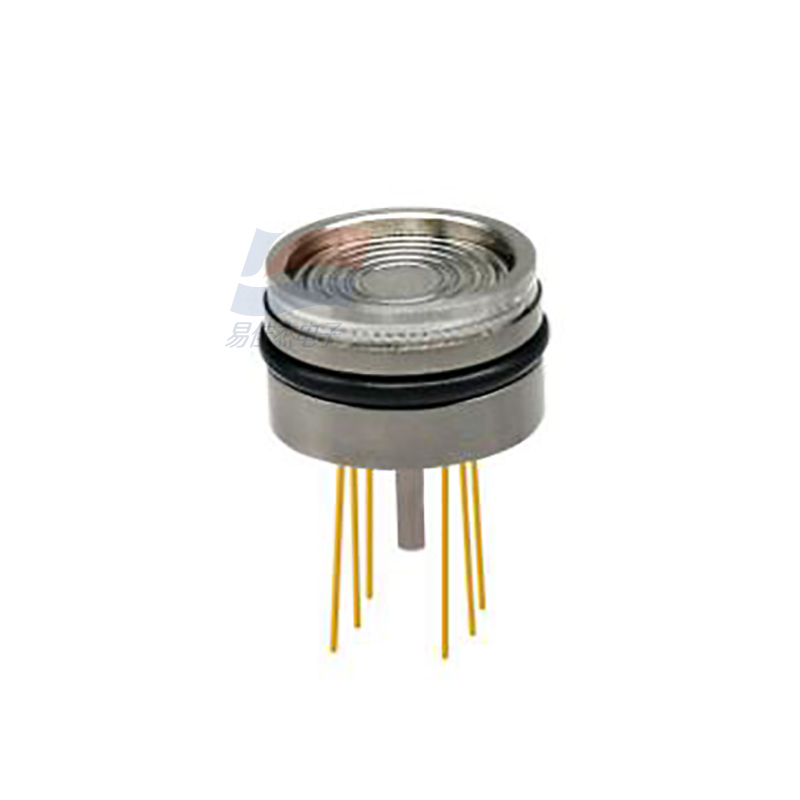

ADS21 Diffuse Silicon Gauge Pressure Sensor Fast Response
ADS21 series piezoresistive diffusive silicon manufacturing process is fine, the range ofup to 0.7~ 1.6MPa, real-time external pressure conduc-
tion to the pressure-sensitive sensing chip, and then converted into an electrical signal output. The product shell is made of316L stainless steel
which is resistant to environmental corrosion and has the advantages of high sensitivity, high linearity and high reliability, and can cope with the
OEM requirements in specific scenarios.
Fast response, strong anti-interference ability
Highly stable silicone oil filled medium
Corrosion-resistant 316L stainless steel grade material
2 times the range ofoverload resistance
Industry standard common external diameter Ф19mm
Specification:
| Repeatability | ±0.3%FS |
| Pressure hysteresis | ±0.3%FS |
| Overload Pressure | 2x |
| Zero Output | 0mV |
| Full scale output | <140mV |
| Reponse Time | <5mS |
| Inputlmpedance | 5.2KΩ |
| Insulation Resistance | 100MQ |
| Operating Temperature | -40~85°C |
| Storage Temperature | -40~85°C |
| Output Mode | Analogue Output |
