รายละเอียดสินค้า:
|
| ช่วงที่กำหนด: | 0 ~ 10 ppm | โอเวอร์โหลดสูงสุด: | 20 หน้าต่อนาที |
|---|---|---|---|
| ความไว (20 ℃): | 0.40 ± 0.20 μA/ppm | เวลาตอบสนอง (T90): | ≤45วินาที |
| เน้น: | Nitrogen Monoxide gas sensor 0-10 ppm,4 electrode NO air quality sensor,7E4-NO-10 nitrogen monoxide detector |
||

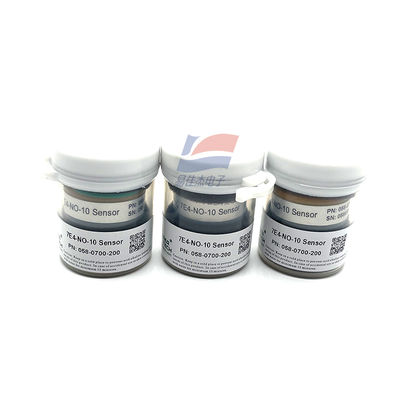

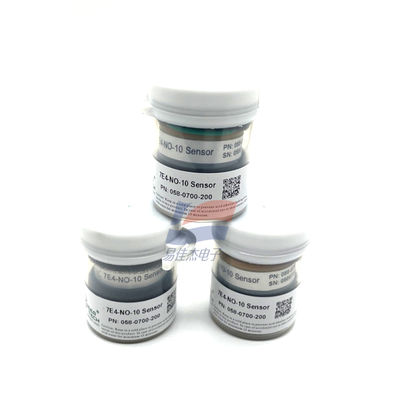

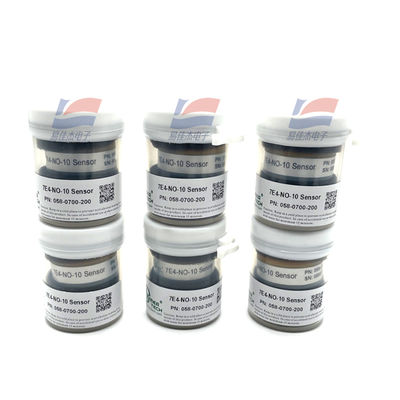

7E4-NO-10 Nitrogen Monoxide 4 Electrode 0 To 10 ppm For Air Quality
This 4-electrode sensor is designed for air quality monitoring to measure the low-concentration NO gas with ultra-high resolutions. The design optimizes the sensor sensitivity, accuracy and long-term stability and enables the sensor to detect NO variations at parts per billion (ppb) levels.
Performance Characteristics
|
Zero Signal (20℃)
|
< ±500 nA |
| Baseline Shift | (-20℃ ~ 50℃) < 100 ppb (After compensation) |
| Resolution | 15 ppb |
| Linearity | Linear up to 10 ppm |
| Bias Voltage | +300 mV |
Environmental
|
Temperature Range
|
-20℃ ~ 50℃ |
| Pressure Range | 1 ± 0.1 atm |
| Humidity Range | 15% ~ 90%RH non-condensing |
Life Time
|
Long Time Output Drift
|
< 10% signal/year |
| Recommended Storage Temp | 10℃ ~ 30℃ |
| Expected Operating Life | 3 years in clean air |
| Storage Life | 6 months in original packaging |
| Warranty | 24 months |
