รายละเอียดสินค้า:
|
| ขนาด: | ความกว้าง/ความสูง/ความยาว | ประเภทเอาต์พุต: | เอาต์พุตแรงดันไฟฟ้า |
|---|---|---|---|
| รูปแบบบรรจุภัณฑ์: | ติดตั้งพื้นผิว | ประเภทเทอร์มินัล: | เทอร์มินัลตรง |
| เกรดความแม่นยำ : | ความแม่นยำสูงสุด 2.5% | เวลาตอบสนอง: | 2,000 ไมโครวินาที |
| เน้น: | industrial pressure sensor with warranty,electronic pressure sensor 7.251 Psi,AG206-050KG pressure sensor for instruments |
||
Product Description:

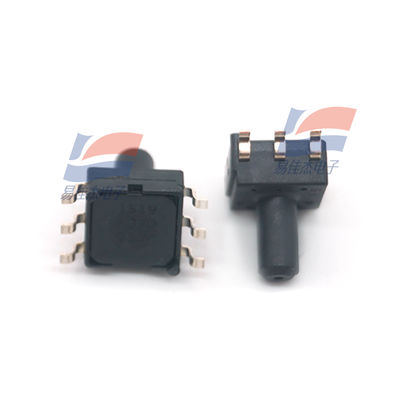

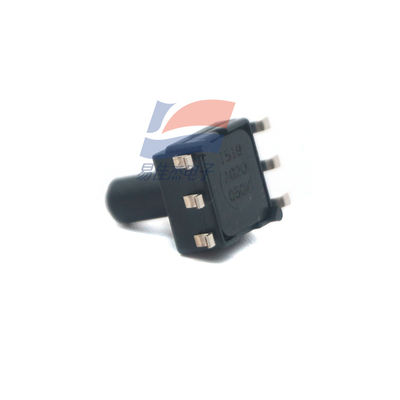

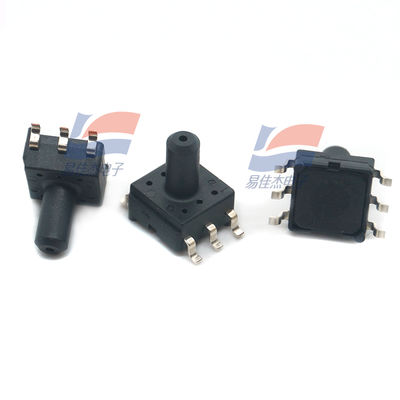

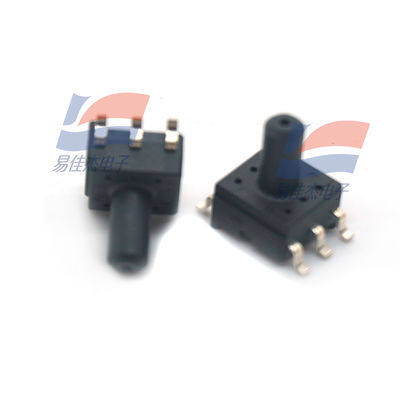

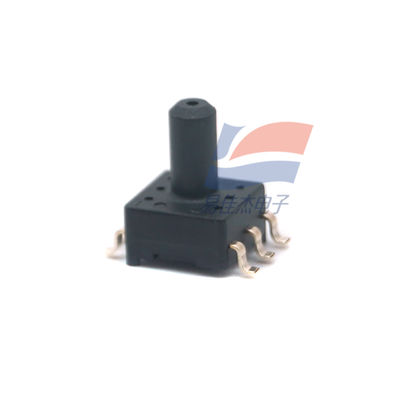

XFGM-6050KPGSR AG206-050KG 7.251 Psi Pressure Sensor Is Used In Industrial Instruments And Meters
Features:
XFGM-6050KPGSR pressure sensor is a pre-amplified, 5V excitation, surface-mounted pressure sensor, mainly applied in industrial instruments and meters, pressure switches, pneumatic equipment, and other fields.
Core parameters
Accuracy: ±2.5% of full scale (optional 1.5% accuracy grade)
Operating temperature range: -40°C to 85°C
Power supply voltage: 4.75 VDC to 5.25 VDC
Output Type: Voltage Output (Nominal Offset 0.20V)
Size: The width/height/length of the main body is all 7mm, and it is packaged in a square shape.
Typical application
Suitable for pressure monitoring in industrial automation, such as in medical equipment and pneumatic control systems, etc. It has the advantage of surface mounting, which can simplify the installation process.
Specifications:
| Accuracy | ±2.5% of full scale |
| Operating temperature range | -40°C to 85°C |
| Power supply voltage | 4.75 VDC to 5.25 VDC |
| Output Type | Voltage Output |
