รายละเอียดสินค้า:
|
| ช่วงการไหล: | 0 ถึง 180 L/นาที (ระยะสั้น 260 L/นาที) | พื้นที่ตาย: | <11 มล. (ใช้งานได้) |
|---|---|---|---|
| ความต้านทาน: | <0.027 CMH2O/(L/Min) ในช่วงการไหลที่สมบูรณ์ (-180 L/นาทีถึง 180 L/นาที) | อุณหภูมิ: | การทำงาน: -20 ° C ถึง 50 ° C (-4 ° F ถึง 122 ° F) |
| เน้น: | medical ventilator flow sensor,air flow sensor for ventilators,medical air flow sensor with warranty |
||

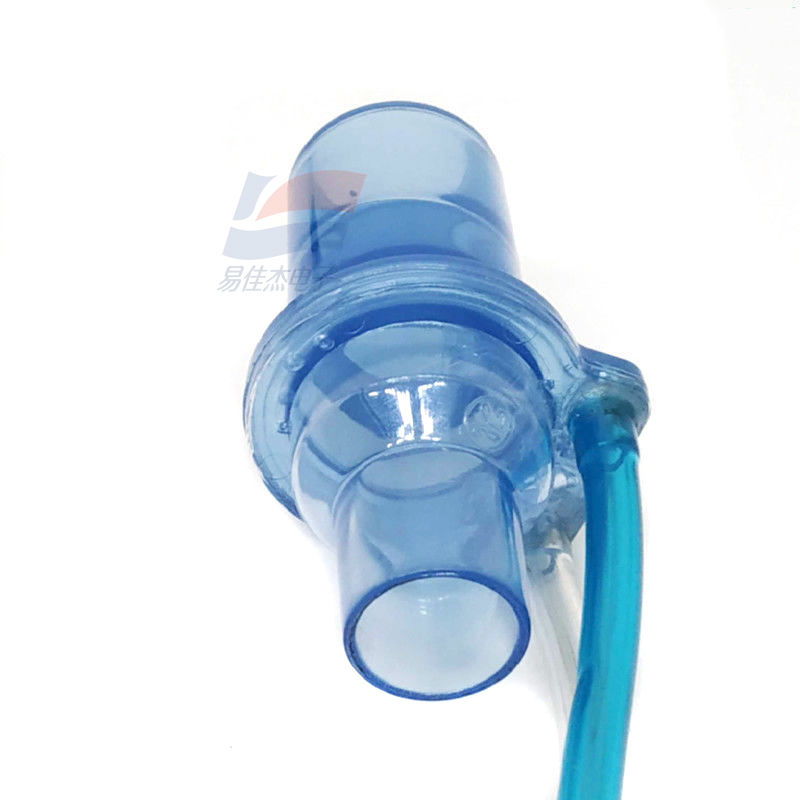

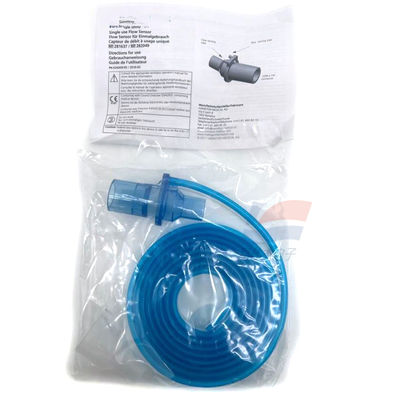

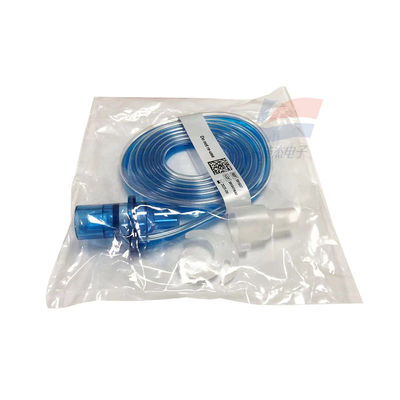

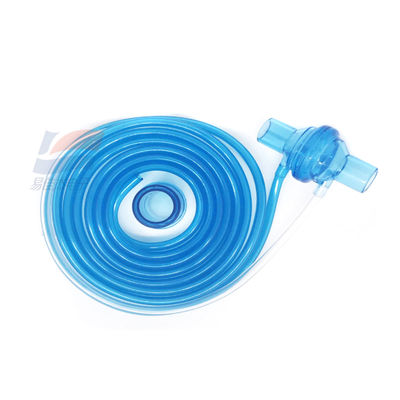

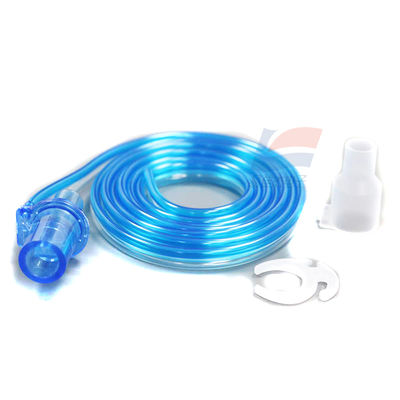

281637 282049 282051 Flow sensor For Medical ventilators
Product Overview:
The 281637 is a compact, industrial-grade gas sensor designed for reliable detection of specific target gases (confirm target gas with manufacturer, e.g., carbon monoxide, methane, volatile organic compounds, or oxygen). It adopts semiconductor (metal oxide) or electrochemical sensing technology (depending on target gas) to deliver fast response, low power consumption, and stable long-term performance. Typical applications include industrial safety monitoring (e.g., factory leak detection), indoor air quality (IAQ) management, smart home safety systems, and portable gas detectors.
|
No. |
Component/Parameter Category |
Description |
Specification/Details |
Material |
Remarks |
|---|---|---|---|---|---|
| 1 | Connector | Ventilator side | OD15 | PSU | - |
| 2 | Tubing | - | - | PVC | - |
| 3 | Connectors for Tubing | Differential pressure measurement | - | PSU | - |
| 4 | Direction Index | - | - | - | - |
| 5 | Individual Serial Number | - | - | - | - |
| 6 | Connector | Patient side | OD22/ID15 | PSU | - |
| 7 | Flap | - | - | PET | - |
| - | Technical Performance | Flow range | 0 to 180 l/min (short term: 260 l/min) | - | - |
| - | Technical Performance | Dead space | < 11 ml (functional) | - | - |
| - | Technical Performance | Resistance | < 0.027 cmH₂O/(l/min) over the complete flow range (-180 l/min to 180 l/min) | - | - |
| - | Technical Performance | Weight | - Approx. 14 g (without tubes) - 68 g (with 188 cm tubes) - 89 g (with 260 cm tubes) - 110 g (with 330 cm tubes) |
- | - |
| - | Material Compliance | Material standards | 1. Complies with ISO 10993-1:2009 (biocompatibility) 2. Complies with Directive 2011/65/EU (RoHS) 3. No natural rubber latex, DEHP, or BPA |
- | Ensures safety for medical use |
| - | Accuracy (Calibrated Flow Sensor) | Volume-related parameters (HAMILTON ventilators) | - HAMILTON-C1/T1/MR1/C2/C3/C6: ± 10% or ± 10 ml (whichever is greater) - HAMILTON-G5/S1: ± 15% or ± 20 ml (whichever is greater) |
