รายละเอียดสินค้า:
|
| ช่วงการวัด: | 0.5 ppm CO ถึง 1,000 ppm CO | มากเกินไป: | 2,000 ppm Co |
|---|---|---|---|
| ตัวกรองออนบอร์ด: | การกำจัดก๊าซกรด | ความไว: | 50 Na/ppm ± 10 Na/ppm |
| น้ำหนัก: | 5G | ช่วงอุณหภูมิในการทำงาน: | -40°C ถึง +60°C |
| เน้น: | electrochemistry industrial gas sensor,compact industrial gas sensor,gas sensor for small instruments |
||
Product Description:

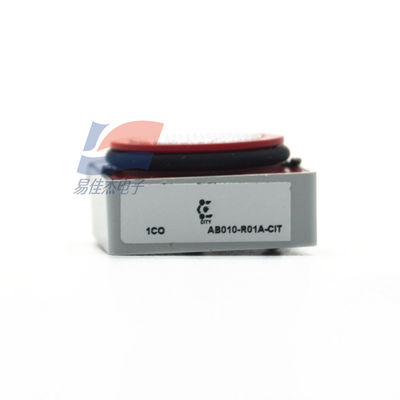

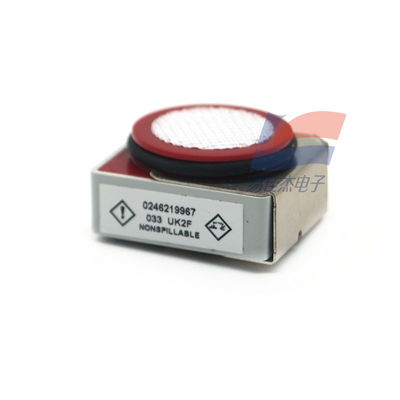

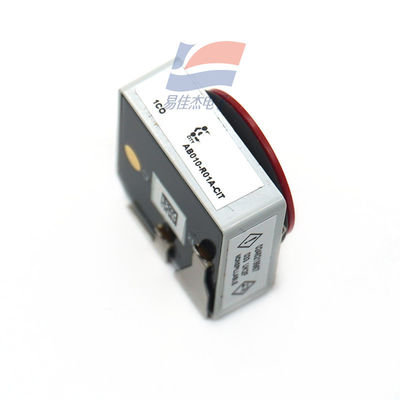

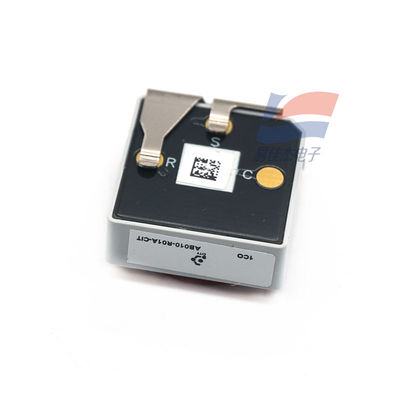

YJJ 1CO AB010-RO1A-CIT Electrochemistry Industrial Gas Sensor Supports Smaller Instruments
Features:
Product model: AB010-RO1A-CIT
Product Introduction: Series 1 analog gas sensor is a compact thin sensor using the most advanced urban technology. The life of the sensors has been extended by five years and the temperature and humidity range has been extended. Gas sensors are designed to operate in a variety of environments and harsh conditions. However, it is important to avoid exposure to high concentrations of solvent vapors during storage, installation to the instrument, and operation. When using sensors with printed circuit boards (PCBS), use degreaser before installing the sensors. Do not stick directly to or near the sensor, as solvents may cause the plastic to crack.
Performance characteristics:
Support for smaller instruments
Designed to meet the highest performance standards
Enhance performance in an extended environment
5 years expected service life
Meet RoHS standard
Parameters:
Measuring range: 0.5 ppm CO to 1000 ppm CO (EN 45544 application)
Overload: 2000 ppm CO
Onboard filter: Acid gas removal
Sensitivity: 50 nA/ppm ±10 nA/ppm
Weight: < 5 g
Operating temperature range: -40°C to +60°C
Operating humidity range: 5 %RH to 95 %RH No condensation
Working pressure range: 600 mbar to 1200 mbar
Specifications:
| Maximum overrun range | 0.5 ppm CO, 1000ppm CO |
| Signal output | 0.1 0.02mA |
| Response time (T90) | < 15s |
| Load resistance | 100 Ω |
