รายละเอียดสินค้า:
|
| ก๊าซติดไฟ (LEL): | 0 - 100% แอลอีแอล | คาร์บอนมอนอกไซด์ (CO): | 0~500 แผ่นต่อนาที |
|---|---|---|---|
| ไฮโดรเจนซัลไฟด์: | 0 ~100 แผ่นต่อนาที | ซัลเฟอร์ไดออกไซด์: | 0 ~ 20 ppm |
| ไฮโดรเจนไซยาไนด์: | 0 - 50 ppm | เวอร์ชันการแพร่กระจาย: | 140 มม. × 82 มม. × 42 มม |
| เน้น: | Portable multi-gas detector,Oxygen combustible gas detector,Toxic gas detection sensor |
||

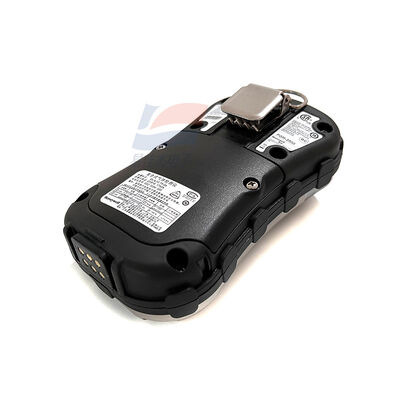

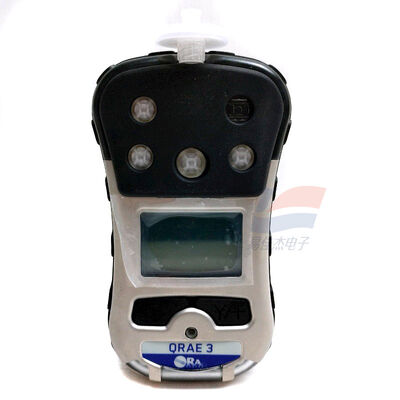

PGM-2500 Portable Multi - Gas Detector For Real - Time Detection Of Oxygen Combustible Gases And Multiple Toxic Gases
Key Features:
Standard Configuration & Typical Applications:
|
Parameter Categories |
Specific Details |
|---|---|
| Detectable Gases & Sensor Parameters | It can be equipped with up to 4 replaceable sensors. The key detectable gases and their ranges are: Oxygen (O₂): 0 - 30% vol; Combustible gases (LEL): 0 - 100% LEL (adopting a catalytic bead sensor with a built - in correction factor library); Carbon Monoxide (CO): 0 - 500 ppm; Hydrogen Sulfide (H₂S): 0 - 100 ppm; Sulfur Dioxide (SO₂): 0 - 20 ppm; Hydrogen Cyanide (HCN): 0 - 50 ppm. Toxic gas sensors adopt electrochemical technology, and the oxygen sensor uses liquid electrolyte. |
| Physical Dimensions & Weight |
- Diffusion version: 140 mm × 82 mm × 42 mm, 365 g (including lithium - ion battery and clip)
- Pumped version: 145 mm × 82 mm × 42 mm, 410 g (including lithium - ion battery, clip and external filter) |
| Power Supply | Rechargeable lithium - ion battery. Runtime varies by version: 14 hours (diffusion, non - wireless); 11 hours (pumped, non - wireless); 10 hours (diffusion, wireless); 8 hours (pumped, wireless). All runtime data are measured at 20℃. |
| Display & Operation | 128×80 monochrome graphic display (40 mm × 27 mm) with backlight. The screen can rotate automatically or on demand. It adopts a two - button operation with an icon - driven user interface. |
| Protection & Environmental Adaptability |
- Protection level: IP67 (diffusion version), IP65 (pumped version)
- Operating temperature: -20℃ to 50℃
- Operating humidity: 0% - 95% relative humidity (non - condensing)
- EMI/RFI performance: Complies with the EU EMC Directive 2014/30/EU |
| Data Logging & Communication | It supports continuous data logging. With a 1 - minute logging interval for 4 sensors, it can store data continuously for 3 months. The logging interval can be adjusted from 1 to 3600 seconds. Data can be downloaded via the travel charger cradle. The wireless model supports Honeywell - dedicated Mesh network, with a line - of - sight transmission range of up to 200m (with EchoView host or Radiant Reader) and 100m (with RAElink3 Mesh). |
| Certifications | CSA Certified (Class I, Division 1 Groups A, B, C, D, T4); ATEX Certified (Ex II 1G Ex ia IIC T4 Ga); IECEx Certified (Ex ia IIC T4 Ga); China Ex Certification (Ex ia IIC T4 Ga) and China CPA Certification. |
