รายละเอียดสินค้า:
|
| แรงดันไฟฟ้าที่ใช้งาน: | 2.2 ~ 5.5V | ปัจจุบันทำงาน: | 980μA (ทั่วไป) |
|---|---|---|---|
| ช่วงอุณหภูมิ: | -30 ~ 80 ℃ | ช่วงความชื้น: | 0~100%RH |
| เน้น: | digital temperature humidity probe,I2C signal humidity sensor,integrated chip temperature sensor |
||

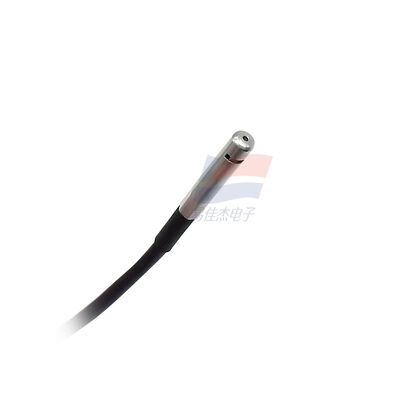

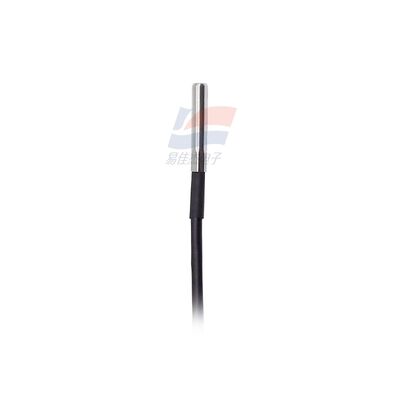

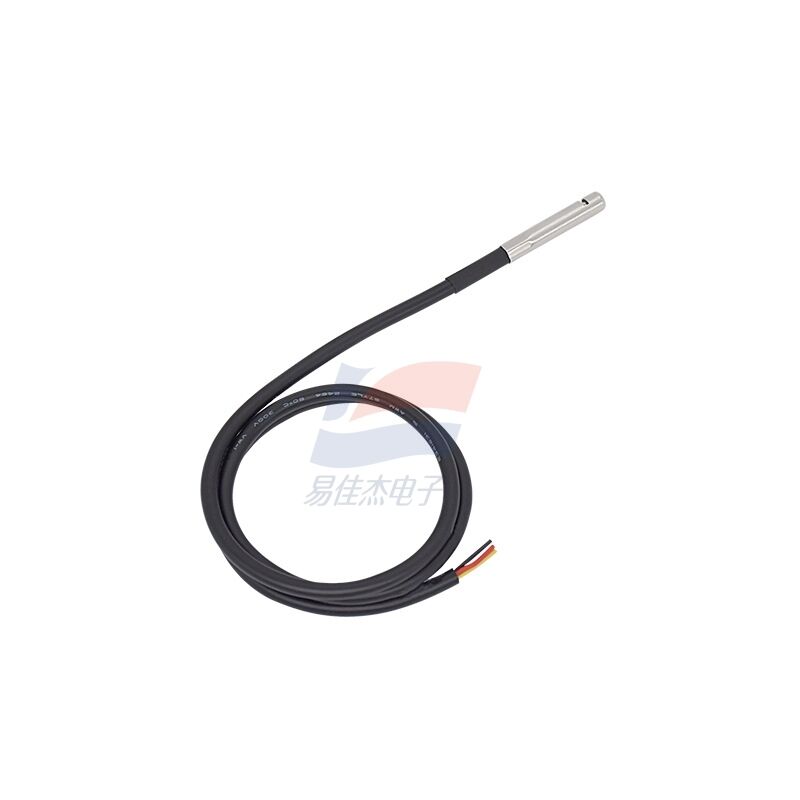

AHT2415C00 Temperature and Humidity Probe Integrated Digital Chip I2C Signal Output
Product Summary
AHT2415C temperature and humidity probe adopts an integrated digital temperature and humidity chip, which outputs standard I²C signals and calibrated before delivery. The sensor Filter Membrane can effectively prevent the interference by water vapor and dust; Sensor
wire length 550mm (±5), and offers customization options
Features
* 304 stainless steel shell
* Excellent impact resistance, heat resistance, low
temperature resistance, chemical resistance and
electrical properties
* Fully calibrated
* Digital output, I²C interface
* Excellent long-term stability
* Quick response, fast recovery time, strong anti-interference ability
Product Parameters
| Operating Voltage | 2.2~5.5V |
| Working Current | 980μA (Typical) |
| Temperature Range | -30~80℃ |
| Humidity Range | 0~100%RHAccuracy ±0.5℃;±3%RH |
| Typical Power | 3.2mWInterface I²C |
