รายละเอียดสินค้า:
|
| หลักการตรวจจับ: | ประเภท MOS | แพ็คเกจมาตรฐาน: | TO-5 กระป๋องโลหะ |
|---|---|---|---|
| ก๊าซเป้าหมาย: | Butane, LP Gas | ช่วงการตรวจจับทั่วไป: | 1 ~ 25% LEL |
| เน้น: | TGS2610-C00 butane gas sensor,low power gas sensor TO-5,LP butane sensor with warranty |
||

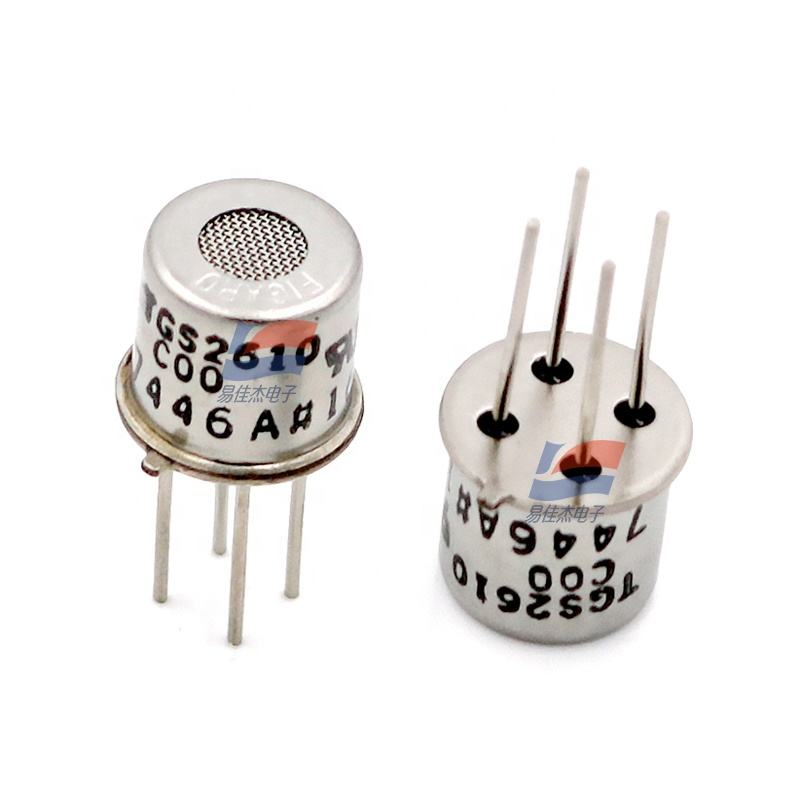

TGS2610-C00 LP Butane Gas Sensor Low Power Consumption TO-5
TGS2610-C00 is a semiconductor type gas sensor which combines very high sensitivity to LP gas with low power consumption and long life. Due to
miniaturization of its sensing chip, TGS2610-C00 requires a heater current of only 56mA and the device is housed in a standard TO-5 package.
TGS2610-C00 possesses small size and quick gas response, making it suitable for gas leakage checkers.
The TGS2610-C00 is able to satisfy the requirements of performance standards such as UL1484 and EN50194.
Features:
* Quick response
* Low power consumption
* Long life and low cost
* Uses simple electrical circuit
Applications:
* Portable LP gas detectors
* LP gas and vapor detection
Specification:
| Standard circuit conditions | Heater voltage5.0±0.2V DC Circuit voltage 5.0±0.2V DC Ps≤15mW Load resistance variable 0.45kΩ min |
| Electrical characteristics under standard test conditions |
Heater current 56±5mA Heater power consumption 280mW VH = 5.0V DC |
| Sensitivity (change ratio of Rs) | 0.45~0.62 |
