รายละเอียดสินค้า:
|
| แรงดันไฟฟ้า: | 18–28 โวลท์ดีซี | ความแม่นยำในการวัด: | ความแม่นยำในการไหล < ±3.0% FS |
|---|---|---|---|
| อุณหภูมิปานกลาง: | 0–90°ซ | อุณหภูมิแวดล้อมในการทำงาน: | -10°ซ ถึง +65°ซ |
| เน้น: | Vortex-shedding liquid flow meter RS485 output,Medical air flow sensor RC3/8 thread,Liquid flow meter with warranty |
||

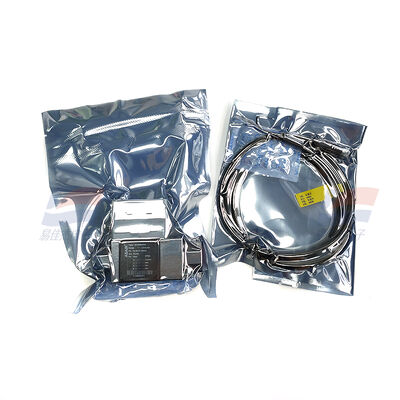

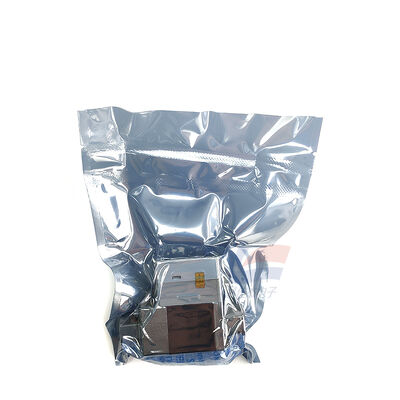

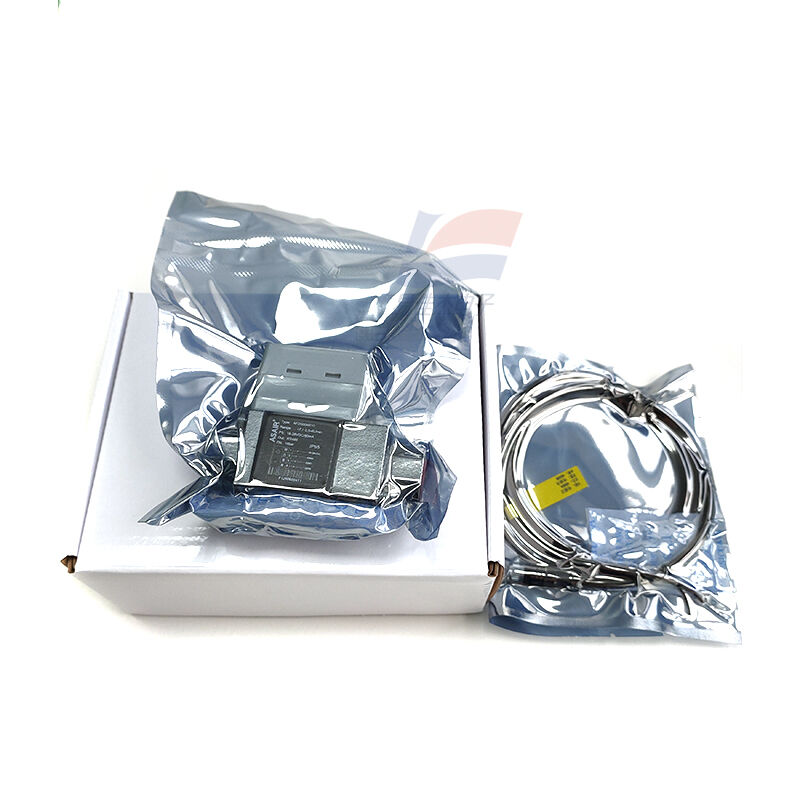

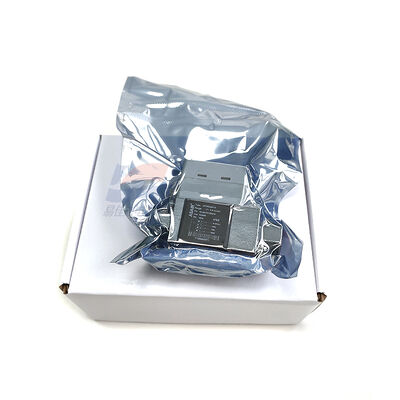

AFD5004R10 Vortex-shedding Liquid Flow Meter RS485 Output RC3/8 Thread
Model Breakdown
AFD5004: Product series + flow range specification; flow range: 0.5–4 L/min (measurement of very low liquid flow rates)
R: Thread type = RC3/8 (British Standard Taper Pipe Thread—internal, DN10 pipe size)
10: Output signal is RS485 (Modbus-RTU); includes local digital display; no temperature sensing function
Specification:
| Pressure rating | Rated 10 bar; maximum short-term pressure resistance 16 bar |
| Wetted materials | PPS engineering plastic and 304 stainless steel |
| Communication | RS485 Modbus RTU |
| Supported baud rates | 4800/9600/19200/115200 bps; configurable device address (1–32) |
| Housing | Includes digital flow rate display; does not include temperature measurement |
| Wiring | 4-core cable (Power +, Power -, 485A, 485B) |
Comparison of available output models in the same series
AFD5004A10: Rc3/8 thread, 4–20 mA analog output, with display
AFD5004V10: Rc3/8 thread, 1–5 V voltage output, with display
AFD5004N10: Rc3/8 thread, NPN switch output
AFD5004P10: Rc3/8 thread, PNP switch output
