รายละเอียดสินค้า:
|
| พื้นที่อ่อนไหว: | 1 | จำนวนพิกเซล: | 1 |
|---|---|---|---|
| ประเภทการห่อหุ้ม: | TO-18 | โหมดระบายความร้อน: | ไม่เย็น |
| ช่วงการตอบสนองทางสเปกตรัม: | 0.9 ถึง 1.7 μm | ความไวแสง: | 1.1 A/W |
| เน้น: | InGaAs PIN photodiode for fiber communication,Non-cooled infrared photoelectric sensor,Optical communication photodiode with warranty |
||
Product Description:

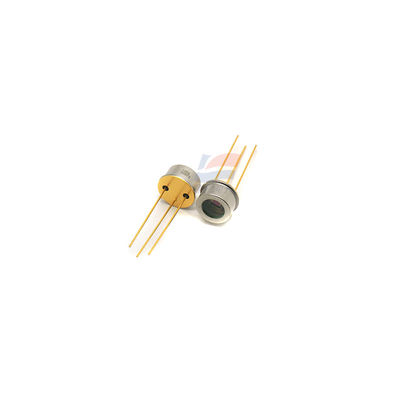

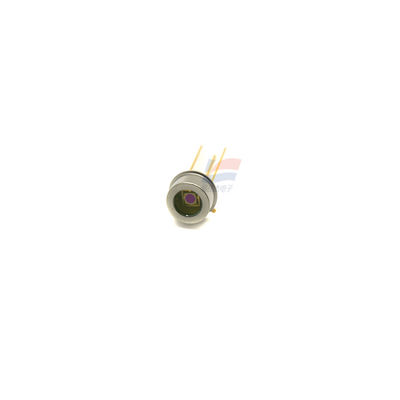

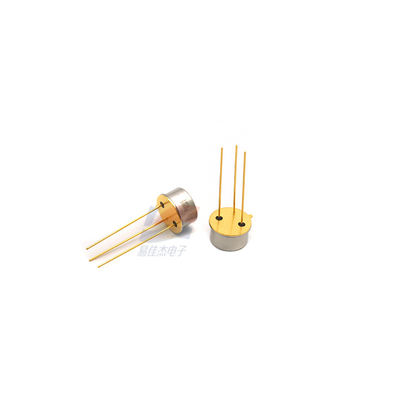

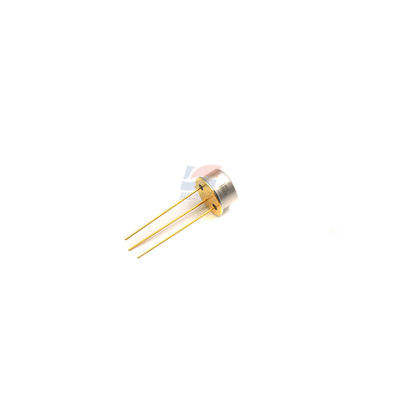

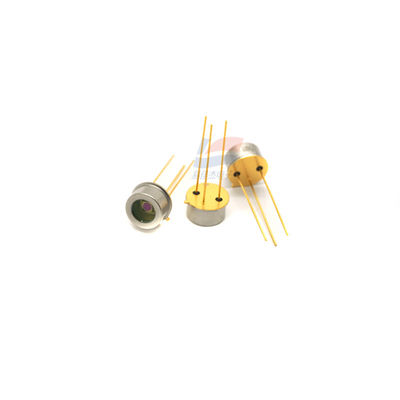

YJJ G12180-020A InGaAs PIN Photodiode Non-Cooled Type For Optical Fiber Communication
Features:
Sensitive area: φ1mm
Product characteristics
Low noise
Low junction capacitance
Low dark current
Sensitive area: φ1mm
Detailed parameter
The sensitive area is φ1mm
The number of pixels is 1
Encapsulation Metal
Encapsulation type: TO-18
Cooling mode Non-cooled
Spectral response range is 0.9 to 1.7 μm
The peak sensitivity wavelength (typical value) is 1.55 μm
Light sensitivity (typical value) 1.1 A/W
Dark current (Max.) 4 nA
Cut-off frequency (typical value) 60 MHz
Junction capacitance (typical value) 55 pF
Noise equivalent power (typical value) 1.4×10-14 W/Hz1/2
Typ. Ta=25 ℃, unless otherwise noted, Photosensitivity: λ=λp, Dark current: VR= 5V, Cutoff frequency: VR= 5V, RL= 50Ω, -3 dB, Terminal capacitance: VR= 5V, f= 1MHz.
Specifications:
| Photosensitive area | 0.2mm |
| The encapsulation type is | TO-18 |
| Peak sensitivity wavelength (typical value) | 800 nm |
| The spectral response range is | 400 to 1000 nm |
