รายละเอียดสินค้า:
|
| บริเวณที่ไวต่อแสง: | φ0.2มม. | บรรจุุภัณฑ์: | โลหะ |
|---|---|---|---|
| หมวดหมู่แพ็คเกจ: | TO-18 | ความยาวคลื่นความไวสูงสุด (ประเภท): | 800 นิวตันเมตร |
| เน้น: | low bias infrared Si APD,high speed infrared photoelectric sensor,infrared APD with high speed response |
||

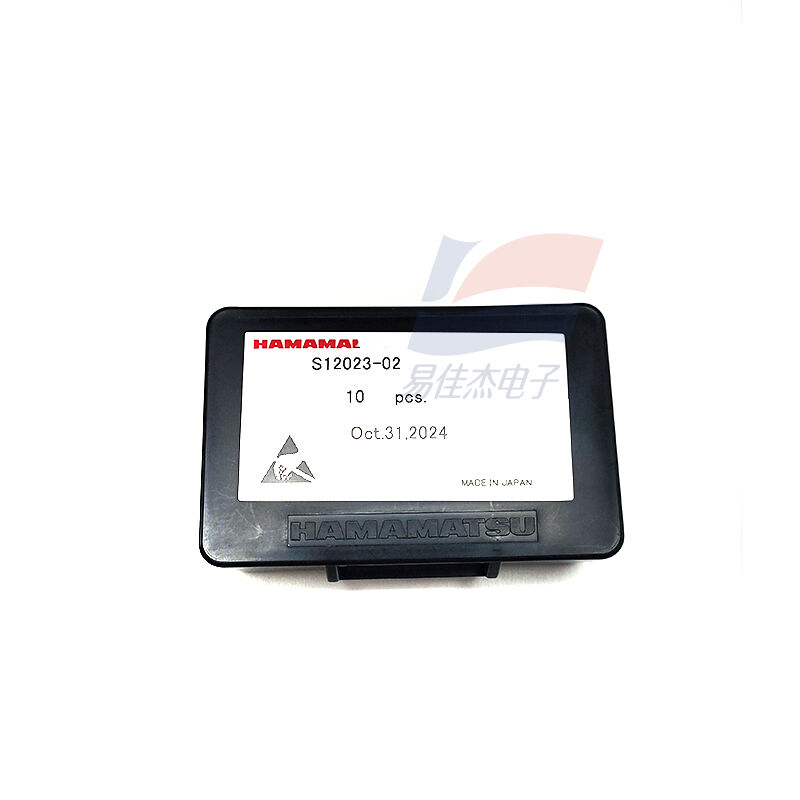

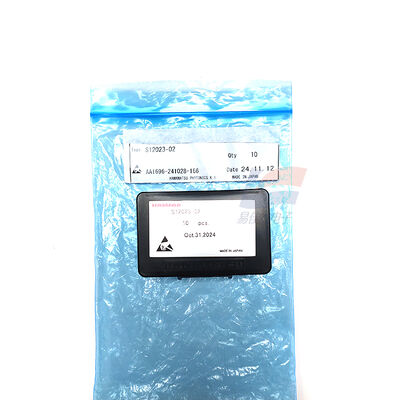

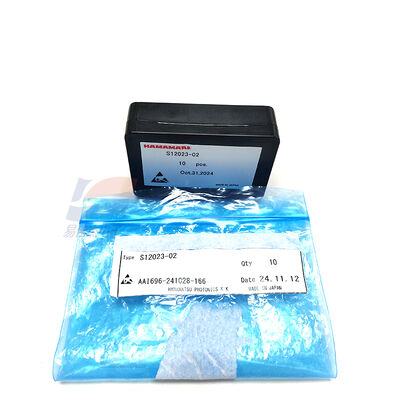

S12023-02 Low Bias Operation Infrared Si APD High Speed Response
Low bias operation, for 800 nm band
This is a 800 nm band near-infrared Si APD that can operate at low voltages, 200 V or less. This is a suitable for applications such as FSO (free space optics) and optical rangefinders.
Features
- Stable operation at low bias
- High-speed response
- High sensitivity and low noise
Specification:
|
Spectral response range
|
400 to 1000 nm |
| Photosensitivity (typ.) | 0.5 A/W |
| Dark current (max.) | 0.5 nA |
| Cutoff frequency (typ.) | 1000 MHz |
| Terminal capacitance (typ.) | 1 pF |
| Breakdown voltage (typ.) | 150 V |
| Temperature coefficient of breakdown voltage (typ.) | 0.65 V/℃ |
| Gain (typ.) | 100 |
